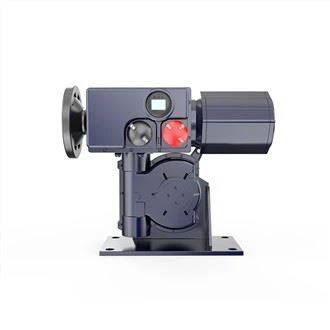

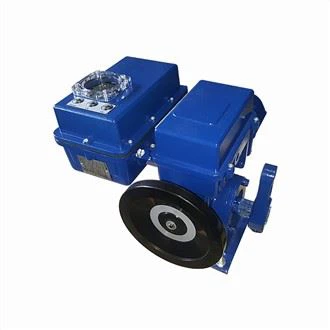

3710 Quarter-turn Electric Actuator
Features and functions of the 3710 series intelligent electric actuators:
1. The control module adopts the proprietary technology of Japanese work, which has powerful functions.
2. Non-intrusive remote control operation function: no need to open the cover to adjust the parameter settings, to achieve manual operation on site, and output contact feedback, display manual/automatic working status.
3. The control module adopts menu setting, which is simple and convenient for parameter setting and function adjustment.
4. Input signal free setting function: according to the working condition, choose analog control (4-20mA) or switching control (220V), wiring independent, non-interference, both can output 4-20mA feedback signal.
5. Valve position display and fault alarm function: with input signal and valve position display function, and signal, manual/automatic, positive/reverse action, limit and fault indicator.
6. Calibration function of input signal and feedback signal to improve control accuracy.
7. Anti-interference function: set reverse action delay time to avoid reverse shock.
8. Zero point, stroke calibration, convenient and accurate, can be set at any position.
9. Four state settings for broken signals: fully closed, fully open, self-setting (full travel), and hold in place.
10. Electronic limit function: with in-place contact feedback.
11. Fault protection function: self-diagnostic fault phenomenon, automatic stop according to the set time, to protect the actuator.
12. Temperature protection function: equipped with temperature protection switch inside the motor to protect the motor from being burned.
13. Action state memory function: the accumulated time and number of actions can be queried to provide a basis for optimal control and maintenance.
14. Self-locking of the actuator after power failure.
371: Design serial number, 3710 series intelligent type electric actuator
L: L is the Linear-turn actuator, R is the quarter-turn actuator
S: S is ordinary type actuator, X is explosion-proof type actuator
A: A denotes dimension specification, denotes with A, B, C, D
05: It represents output force or output torque, see model and specifications
※: The symbol for the selection
S: Space heater symbol (optional)
J: Crank with base
Main technical parameters of 3710 series intelligent actuator
|
|
Items |
Parameters |
|||
|
Control mechanism |
Control signal |
DC4~20mA orAC220V switch signal |
|||
|
Feedback signal |
DC4—20mA（Load resistance ≤500Ω） |
||||
|
Dead Zone |
1.0％—2.0％ can adjust to 0．4％ |
||||
|
Zero adjustment |
0~80% |
||||
|
Range adjustment |
20~100％ |
||||
|
Basic error, return difference |
1.0% |
||||
|
Control limit |
Electric limit:Automatically lock the workspace |
||||
|
Opening test |
Precision conductive plastic potentiometer |
||||
|
Fault, overload protection |
When the actuator does not move due to fault or overload, the motor is cut off to protect |
||||
|
Control signal calibration |
The upper and lower limits of the control signal can be calibrated |
||||
|
Feedback signal calibration |
The adjustable upper and lower limit feedback deviation is less than 0.5% |
||||
|
Other functions |
Positive and negative rotation, upper and lower limit, power failure, fault contact feedback (capacity less than 250V 100mA) |
||||
|
Other functions |
Positive and negative rotation, upper and lower limit, hand/automatic, fault contact feedback (capacity less than 250V 100mA) |
||||
|
Power |
Power supply |
AC220V +10% -15% 50HZ |
|||
|
Drive the motor |
AC Reversible single-phase gear reduction motor |
||||
|
Whole machine power
|
A type |
B type |
C type |
D type |
|
|
50VA |
150VA |
250VA |
500VA |
||
|
Subsidiary mechanism |
Remote control |
Can realize the scene manual operation and the menu setting debugging |
|||
|
Space heater |
Options |
||||
|
Manual mechanism |
Portable manual crank |
||||
|
Mounting conditions |
Ambient temperature
|
Standard type -10C~+60℃ |
|||
|
Heating type -35℃~+60℃ |
|||||
|
Allow Vibration |
Below 1.5G |
||||
|
Relative humidity |
Below 95％ |
||||
|
Environmental gases |
No corrosive gas |
||||
|
Installation mode |
Arbitrary, for maintenance convenience to avoid inversion |
||||
|
Terminal
|
Normal A, B, c 2-g 1/2” |
||||
|
Type D and explosion-proof Type 2-g 3/4” |
|||||
|
Protection level |
Ordinary type IP55, explosion-proof type IP65 |
||||
|
Explosion-proof grade |
ExdIIBT4 Gb |
||||
